HELLA TĀLĀS GAISMAS LUKTURI

Luminator LED high-beam headlamp, chromium (ECE Ref. 50)Luminator LED high-beam headlamp, chromium (ECE Ref. 50)Luminator LED high-beam headlamp, chromium (ECE Ref. 50)Luminator LED high-beam headlamp, chromium (ECE Ref. 50)Luminator LED high-beam headlamp, chromium (ECE Ref. 50)

Luminator LED high-beam headlamp, chromium (ECE Ref. 50)

326

Dizains un veiktspēja atbilstoši visaugstākajiem standartiem:
Luminator LED rāda ceļu gan dienā, gan naktī.
LED tālās gaismas luktura jaudīgais atstarotājs nodrošina optimālu apgaismojumu un komfortablu drošību tumsā.
Ar datoru optimizētas lieljaudas gaismas diodes vēl vairāk palielina gaismas plūsmu un vienmērīgi apgaismo ceļu.
Esi daļa no stila - Luminator LED.

Tehniskie parametri
Kods
1F8 016 560-031

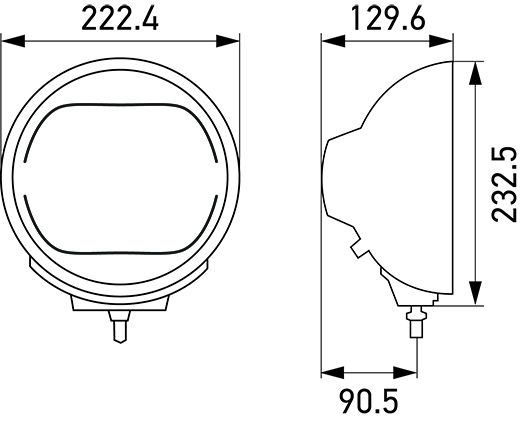

Dziļums (mm)
224.0 mm
Spriegums (V)
9-32V V
IP
6K7,X9K

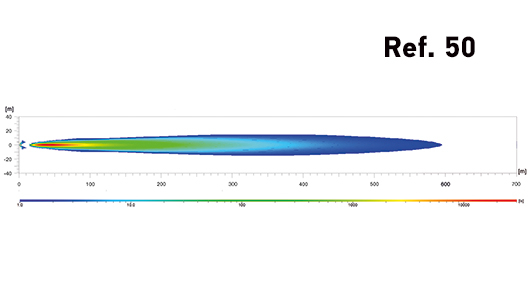

References skaitlis
50

References skaitlis (ref.) parāda maksimālo luktura gaimas stiprumu.

References skaitli aprēķina, izejot no maksimālā gaismas stipruma kandelas. References skaitlim nav mērvienības.

References skaitļu summa nedrīkst būt lielāka par 100.

Lasīt vairāk

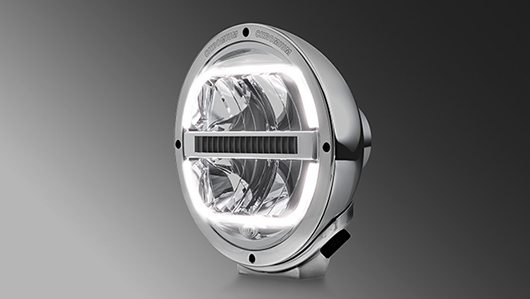

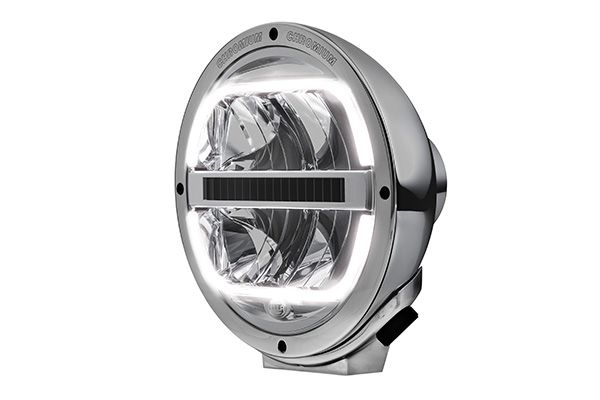

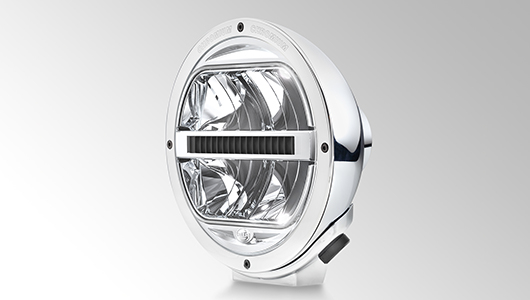

Luminator LED: ➔ Auxiliary driving lamp with futuristic look boasting state-of-the-art LED technology ➔ The striking night design is created by the LED position light with its characteristic hexagonal contoured design ➔ Switched on, the clear, cold-white radiating LED light has a characteristic lighting design by day and night ➔ Immediate response for attention-grabbing headlight flashing ➔ EdgeLight technology has been applied for a more intensive appearance of the position light ➔ The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² brings about efficient thermal management ➔ Replaceable LED headlamp insert with shock-resistant PC cover lens ➔ Sturdy, high-quality full-metal headlamp with housing and fixing bracket of zinc diecasting ➔ Mounting bracket with tool-free "comfort pre-adjustment" for precision adjustment of the tilt setting ➔ Electronics components qualified according to automotive standard ➔ Multi-voltage: suitable for 12 V and 24 V rated voltage ➔ High beam with reference number 25 or 50 and with position light ➔ ECE type-approved (ECE R112 high beam, ECE R7 position light, ECE R10 EMC) ➔ Weight 2,700 g ➔ Power consumption with 12 V: position light 2.4 W and high beam 14.5 W ➔ Power consumption with 24 V: position light 5 W and high beam 14.5 W
